Krux API

v2.0.4 Updated August 2025

Introduction

This guide is designed to help subscribed users understand and utilize the powerful capabilities of the Krux platform through its API offerings. The Krux API Suite provides integration options for importing and exporting data, enabling users to efficiently manage and exchange operational data with other systems.

The suite is divided into two main components:

1. Plan API: Allows users to import plans and hole data directly into the Krux platform, ensuring that all planning and drilling information is up-to-date and centrally accessible.

2. Export API: Enables users to retrieve incremental report data from Krux, making it easy to synchronize Krux data with external systems or databases.

Whether you're integrating Krux with third-party applications or automating internal workflows, this documentation will guide you through the process with detailed endpoints, request/response structures, and usage examples.

API Usage flow

The following steps constitute the full flow of the API and gives you a general idea on how the APIs can be best used efficiently

User Authentication Steps

1. Client sends a POST request to the Krux Authentication Endpoint with service account user credentials (e.g., username/password or API key).
2. Krux returns an Access Token (Bearer Token).
3. Client includes the Access Token in the Authorization header for all subsequent API calls.

Plan API Suite Usage – Mostly for Resource Companies
(Import Plans and Holesinto Krux)
Click here for details

1. Client prepares plan data in the required JSON format.
2. Client sends a GET request to /api/V1/lookups to get appropriate lookup IDs needed for a valid import into Krux
3. Client sends a POST request to /api/v1/Plans endpoint with plan data in the request body.
4. Client prepares hole data in the required JSON format.
5. Client sends a GET request to /api/V1/lookups to get appropriate lookup IDs needed for a valid import into Krux
6. Client sends a POST request to /api/v1/Holes endpoint with hole data in the request body.
7. Krux validates the data and stores it in the system against a plan or project or both.
8. API returns a success response or an error message with details if validation fails.

Export API Suite Usage (Export Data out of Krux)
Click here for details

1. Client sends a GET request to /api/export/data with appropriate filters (e.g., ExportDateTime, query types).
2. Krux processes the request and retrieves incremental data.
3. API returns data payload in JSON format.
4. Client system parses and ingests the data for downstream use.

Service Account Creation

A Service Account is required to use the API and can be created using the following steps.

• Login to KruxMetrix using account with Administrator privileges.
• Navigate to Settings -> Users.
•  Press Add User button which will open the New User page.

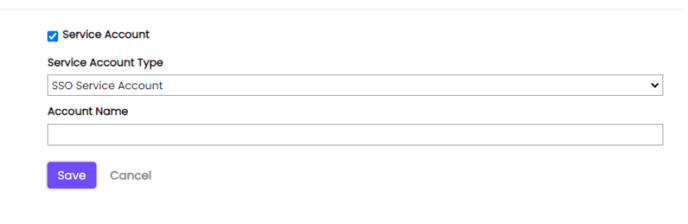

• On the New User page, check the Service Account”checkbox and enter the required fields. Click Save to continue.

Authorization

This API utilizes Bearer Tokens for authorization. The Bearer Token must be passed in a key named “Authorization” in each subsequent call to the API.



AUTHORIZATION

Bearer Token

Token

<token>



Token Expiration

Tokens are valid for 7 days. Requests made using an expired token will result in 401 Unauthorized responses from the server and the Response  Headers will contain the WWW-Authenticate key that has a value similar to Bearer error="invalid_token", error_description="The token expired at '01/01/2025 17:57:27'"



Authentication Endpoint

Used to authenticate user and obtain the Bearer Token from “token” in the Json response.
The token key returned in a successful authentication response is needed for all subsequent API calls.


ENDPOINT

https://metrixapi.kruxanalytics.com/users/auth



BODY

{"Username":"service_account","Password":"service_account_password"}



RESPONSE

{

    "$id": "1",

    "id": 12345,

    "firstName": "Service",

    "lastName": "Account",

    "username": "service_account",

    "password": null,

    "token": "your_token",

    "locked": false,

    "companyID": 12345,

    "configurationName": null,

    "configurationID": 0,

    "subscriptionList": "Krux Api",

    "roleList": "API Service Account'"

    "companyTypeId": 1

}



Errors

Errors occurring while authenticating will result in 401 Unauthorized.

{

    "$id": "1",

    "message": "Username or password is incorrect"

}



Plan API Suite

Hole and Plan/Project Relationship Diagram

This relationship diagram details unique IDs needed to create Plans or Holes in the Krux system:

LOOKUP/GET Methods

These methods are only available to Resource Companies. It will return unauthorized error for Drilling company accounts.

PlanTypes GET

This endpoint can be used to request non-deleted PlanType data available to the company of the authorized user.



ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Plans/types

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETERS

None

Response

[



{



       "PlanTypeID": 21,



       "PlanType": "Plan-June",



       "Status": "ACTIVE"

}



]

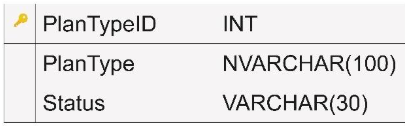

Data Definition

Locations GET

This endpoint can be used to request non-deleted Location data available to the company of the authorized user.



ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Lookups/locations

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETERS

None


Response

[

  {

    "locationID": 0,

    "locationName": "string",

    "abbreviation": "string",

    "status": "string"

  }

]

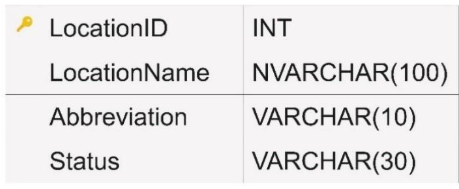

Data Definition



Currencies GET

This endpoint can be used to request available Currencies in the Krux system for an authorized user.



ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Lookups/currencies

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETERS

None

Response

[

  {

    "currencyID": 0,

    "country": "string",

    "currency": "string",

    "currencyCode": "string",

    "symbol": "string"

  }

]



Data Definition

Plans GET

This endpoint can be used to request non-deleted Plans available to the company for the authorized user. If PlanID is provided, then details about that plan is retrieved. If no parameter is provided, all the plans are retrieved.



ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Plans

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETERS

{id}

Response

[

  {

    "planId": 0,

    "planName": "string",

    "status": "string",

    "locationID": 0,

    "locationName": "string",

    "createDateTime": "2025-04-02T22:37:27.065Z"

  }

]

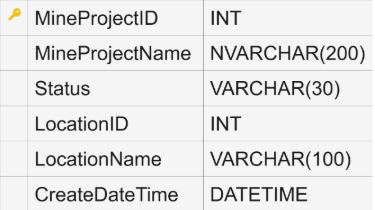

Data Definition

Projects GET

This endpoint can be used to request the list of non-deleted Projects available to the company of the authorized user.

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Lookups/projects

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETERS

None

Response

[

  {

    "projectID": 0,

    "contractID": 0,

    "createDateTime": "2025-04-02T22:47:51.006Z",

    "projectName": "string",

    "contractName": "string",

    "poNumber": "string",

    "locationID": 0,

    "locationName": "string",

    "projectStatus": "string"

  }

]

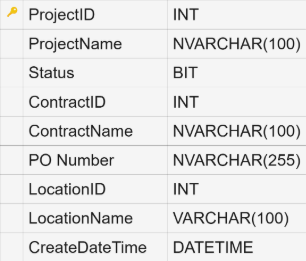

Data Definition


HoleTypes GET

This endpoint can be used to request the list of non-deleted Hole Types available to the company of the authorized user.

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Holes/types

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETERS

None

Response

[

  {

    "holeTypeID": 0,

    "holeType": "string",

    "status": "string"

  }

]



Data Definition

Tenement GET

This endpoint can be used to request the list of non-deleted Tenements available to the company of the authorized user.

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Lookups/tenements

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETERS

None

Response

[

  {

    "tenementID": 0,

    "tenementName": "string",

    "status": "string",

    "startDate": "2025-04-02",

    "endDate": "2025-04-02"

  }

]

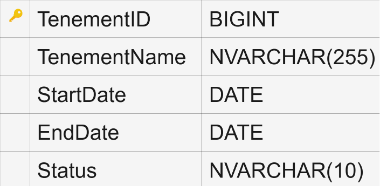

Data Definition


 SecondaryStatus GET

This endpoint can be used to request the list of non-deleted SecondaryStatuses available to the company of the authorized user.

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Lookups/secondaryStatuses

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETERS

None

Response

[

  {

    "secondaryStatusID": 0,

    "secondaryStatus": "string",

    "status": "string"

  }

]

Data Definition

Holes GET

This endpoint can be used to request the list of Holes and associated data available to the company of the authorized user.

• If no PlanID or ProjectID is provided as parameter, return all holes for the company.
• If the ProjectID or PlanID is passed, retrieve data for all holes under that Plan or Project.
• The id parameter can be either a PlanID or ProjectID based on the isPlan boolean.

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Holes?isPlan=true

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETERS

Key	Value	Description
id	Integer  (12345)	The id is the ProjectID or PlanID filter for the data that is going to be returned. If no value is provided here, all holes for the company is retrieved
isPlan	boolean  (true, false)	If isPlan is true, the id value is parsed as a PlanID and if isPlan is false, the id is parsed as a ProjectID



Response

[

  {

    "holeID": 14-0,

    "holeName": "string",

    "holeStatus": "string",

    "completeDateTime": "2025-04-02T23:17:56.594Z",

    "holeType": "string",

    "contractorCompany": "string",

    "contracteeCompany": "string",

    "contract": "string",

    "project": "string",

    "plan": "string",

    "firstActivityDate": "2025-04-02",

    "lastActivityDate": "2025-04-02",

    "maxDepth": 0,

    "plannedDepth": 0,

    "depthUnit": "string",

    "totalDistanceDrilled": 0,

    "totalActivityHours": 0,

    "totalDrillingHours": 0,

    "penetration": 0,

    "easting": 0,

    "northing": 0,

    "utmZone": "string",

    "mineGridEasting": 0,

    "mineGridNorthing": 0,

    "elevation": 0,

    "elevationUnit": "string",

    "plannedAzimuth": 0,

    "plannedDip": 0,

    "deletedFlag": "string",

    "contractID": 0,

    "firstDrillingActivityDate": "2025-04-02",

    "planID": 0,

    "projectID": 0,

    "plannedHoleName": "string",

    "holeSpecifications": "string",

    "tenement": "string",

    "isDirectional": true,

    "targetNorthing": 0,

    "targetEasting": 0,

    "targetElevation": 0,

    "directionalUnit": "string",

    "plannedDogleg": 0,

    "plannedGTF": 0,

    "startType": "string",

    "directionalDepthFrom": 0,

    "directionalDepthTo": 0,

    "directionalInclinationStart": 0,

    "directionalInclinationEnd": 0,

    "directionalAzimuthStart": 0,

    "directionalAzimuthEnd": 0,

    "SecondaryStatus": 0,
    "drillPriority": 0

  }

]

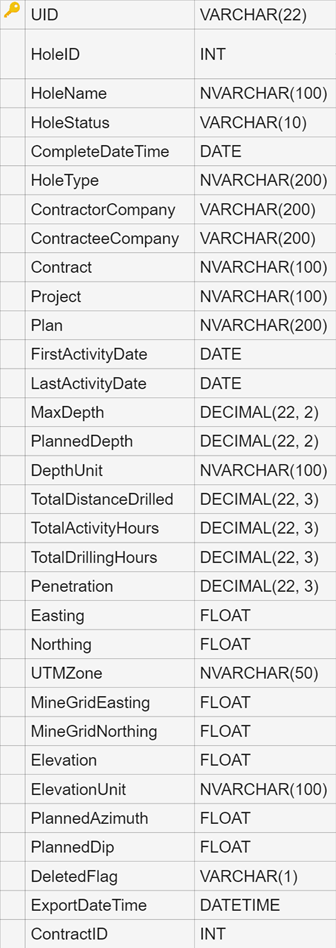

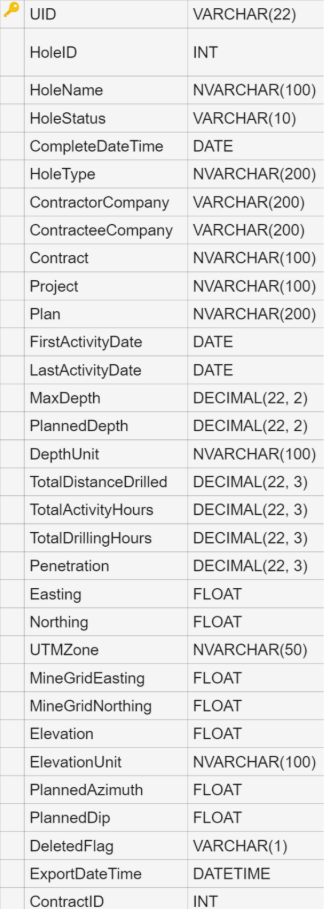

Data Definition

<img>

POST Methods

These methods are only available to Resource Companies. These endpoints will allow submitting Plans and Holes into Krux.

Plan POST

This method can be used to insert plans into Krux

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Plans

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETER

None

REQUEST BODY SAMPLE

{

  "plans": [

    {

      “planName”: "AutoTest-12345",

      “planTypeId”: 41,

      “locationId”: 242,

      “budget”: 1000,

      “currencyId”: 1,

      “plannedDepth”: 20,

      “plannedDepthUnit”: "feet"

    }

  ]

}



Response Body

{"InvalidRecords":[],"Status":1}



Errors and Status codes

The error and status codes can be referenced in the APPENDIX


When inserting Plans into Krux, there are specific restrictions governing the values that may be entered into each field. These restrictions are intended to ensure data consistency and integrity during Hole creation. Please ensure all Plan creation entries strictly adhere to the allowed values for each field. Invalid entries will result in errors or rejected submissions.

Below is the complete list of fields along with their corresponding allowed values:

Fields	Allowed Values
planName	Alphanumeric name that is unique to the user’s company
planTypeId	Valid PlanTypeID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Plans/types
locationId	Valid LocationID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/locations
budget	Numerical value, allows decimals
currencyId	Valid currencyID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/currencies
plannedDepth	Numerical value, allows decimals
plannedDepthUnit	This accepts one of two string values:   1. “Meters”  2. “Feet”



Holes POST

This endpoint can be used to Insert Holes against a Plan or Project.

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Holes

Request Body Sample – Non - Directional Hole



{

  "holes": [

    {

      "planId": 477,

      "projectId": 1008,

      "holeName": "NewHole1234",

      "plannedHoleName": "NewHole1234",

      "isDirectional": false,

      "plannedDepth": 150,

      "utmZone": "11N",

      "utmEasting": 13,

      "utmNorthing": 2,

      "elevation": 100,

      "plannedAzimuth": 120,

      "plannedDip": -2,

      "plannedDepthUnit": "meters",

      "elevationUnit": "meters",

      "mineGridEasting": 44,

      "mineGridNorthing": 12,

      "holeTypeId": 43,

      "holeSpecifications": "This is a hole added from the API",

      "tenementId": 15,

      "drillPriority": "High",

      "secondaryStatusID":"26"

    }

  ]

}

Request Body Sample – Directional Hole:

{    "holes": [      {        "planId": 477,        "projectId": 1008,        "holeName": "directionalHole",        "plannedHoleName": "NewHole1234",         "secondaryStatusID":"26",        "utmEasting": 12.34,        "utmNorthing": 12.56,        "utmZone": "1N",        "elevation": 450,        "elevationUnit": "feet",        "mineGridEasting": 10.76,        "mineGridNorthing": 3.90,        "isDirectional": true,        "holeTypeId": 43,        "holeSpecifications": "This is a directional hole added from the API",        "tenementId": 15,        "drillPriority": "High",        "secondaryStatusID":"26",        "directionalUnit": "meters",        "targetNorthing": 20,        "targetEasting": 40,        "targetElevation": 2,        "plannedDogleg": 31,        "plannedGtf": 4,        "startType": "Hole Bottom",        "directionalDepthFrom": 0,        "directionalDepthTo": 35,        "directionalInclinationStart": 0,        "directionalInclinationEnd": 44,        "directionalAzimuthStart": 20,        "directionalAzimuthEnd": 35      }    ]  }



Response Body

{"InvalidRecords":[],"Status":1}



Errors and Status codes

The error and status codes can be referenced in the APPENDIX

Field Validations

When inserting Holes against a designated Plan or Project, there are specific restrictions governing the values that may be entered into each field. These restrictions are intended to ensure data consistency and integrity during Hole creation. Please ensure all Hole creation entries strictly adhere to the allowed values for each field. Invalid entries will result in errors or rejected submissions.

Below is the complete list of fields along with their corresponding allowed values:

Fields	Allowed Values
planId	Valid PlanID. This can be retrieved using endpoint https://metrixapi.kruxanalytics.com/api/v1/Plans
projectId	Valid ProjectID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/projects
holeName	Enter a Valid Hole Name that is unique in the Project/Plan the hole is being uploaded to
plannedHoleName	Enter a Valid Planned Hole Name that is unique in the Project/Plan the hole is being uploaded to
isDirectional	This accepts one of two values:   1. true  2. false
plannedDepth	Numerical value, allows decimals
utmZone	Valid UTMZone values, numerical values between 1-60 inclusive appended by N or S.  Eg: 1N or 60S
utmEasting	Numerical value, allows decimals
utmNorthing	Numerical value, allows decimals
elevation	Numerical value, allows decimals
plannedAzimuth	Numerical value, allows decimals
plannedDip	Numerical value, allows decimals
plannedDepthUnit	This accepts one of two string values:   1. “Meters”  2. “Feet”
elevationUnit	This accepts one of two string values:   1. “Meters”  2. “Feet”
mineGridEasting	Numerical value, allows decimals
mineGridNorthing	Numerical value, allows decimals
holeTypeId	Valid holeTypeID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Holes/types
holeSpecifications	Text field
tenementId	Valid TenementID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/tenements
targetNorthing	Numerical value, allows decimals
targetEasting	Numerical value, allows decimals
targetElevation	Numerical value, allows decimals
directionalUnit	This accepts one of two string values:   1. “Meters”  2. “Feet”
plannedDogleg	Numerical value, allows decimals
plannedGtf	Numerical value, no decimals allowed
startType	Allows one of the four values:  1. Hole Bottom  2. Cut Curve  3. Wedge  4. Cement Plug
directionalDepthFrom	Numerical value, allows decimals
directionalDepthTo	Numerical value, allows decimals
directionalInclinationStart	Numerical value, allows decimals
directionalInclinationEnd	Numerical value, allows decimals
directionalAzimuthStart	Numerical value, allows decimals
directionalAzimuthEnd	Numerical value, allows decimals
drillPriority	Allows one of the four string values:  1. “Critical”  2. “High”  3. “Medium”  4. “Low”
secondaryStatusID	Valid SecondaryStatusID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/secondaryStatuses



PATCH Methods

These methods are only available to Resource Companies.

Plan PATCH

This method can be used to update information on Plans

ENDPOINT

metrixapi.kruxanalytics.com/api/v1/Plans

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETER

None

REQUEST BODY SAMPLE

"plans": [

    {

      planName: "AutoTest-Edit",

      planTypeId: 41,

      locationId: 242,

      budget: 1000,

      currencyId: 1,

      plannedDepth: 20,

      plannedDepthUnit: "feet"

      planId: 786,

      planStatus: "Active"

    }

  ]

}



Response Body

{"InvalidRecords":[],"Status":1}



Errors and Status codes

The error and status codes can be referenced in the APPENDIX

Field Validations

When updating Plans in Krux, there are specific restrictions governing the values that may be entered into each field. These restrictions are intended to ensure data consistency and integrity during Hole creation. Please ensure all Plan creation entries strictly adhere to the allowed values for each field. Invalid entries will result in errors or rejected submissions.



Below is the complete list of fields along with their corresponding allowed values:

Fields	Allowed Values
planTypeId	Valid PlanTypeID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Plans/types
locationId	Valid LocationID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/locations
budget	Numerical value, allows decimals
currencyId	Valid currencyID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/currencies
plannedDepth	Numerical value, allows decimals
plannedDepthUnit	This accepts one of two string values:   1. “Meters”  2. “Feet”
planStatus	This accepts one of two string values:   1. “Active”  2. “Complete”
planName	Alphanumeric name that is unique to the user’s company


Holes PATCH

This endpoint can be used to Update values of Holes against a Plan or Project.

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Holes

Request Body Sample – Non - Directional Hole



{    "holes": [      {        "planId": 477,        "projectId": 1008,        "holeId": 1234,        "status": "Complete"        "holeName": "NewHole1234",        "plannedHoleName": "NewHole1234",        "isDirectional": false,        "plannedDepth": 150,        "utmZone": "11N",        "utmEasting": 13,        "utmNorthing": 2,        "elevation": 100,        "plannedAzimuth": 120,        "plannedDip": -2,        "plannedDepthUnit": "meters",        "elevationUnit": "meters",        "mineGridEasting": 44,        "mineGridNorthing": 12,        "holeTypeId": 43,        "holeSpecifications": "This is a hole added from the API",        "tenementId": 15,        "drillPriority": "High",        "secondaryStatusID":"26"      }    ]





Request Body Sample – Directional Hole



{    "holes": [      {        "planId": 477,        "projectId": 1008,        "holeId": 1234,        "status": "Complete"        "holeName": "directionalHole",        "plannedHoleName": "NewHole1234",         "secondaryStatusID":"26",        "utmEasting": 12.34,        "utmNorthing": 12.56,        "utmZone": "1N",        "elevation": 450,        "elevationUnit": "feet",        "mineGridEasting": 10.76,        "mineGridNorthing": 3.90,        "isDirectional": true,        "holeTypeId": 43,        "holeSpecifications": "This is a directional hole added from the API",        "tenementId": 15,        "drillPriority": "High",        "directionalUnit": "meters",        "targetNorthing": 20,        "targetEasting": 40,        "targetElevation": 2,        "plannedDogleg": 31,        "plannedGtf": 4,        "startType": "Hole Bottom",        "directionalDepthFrom": 0,        "directionalDepthTo": 35,        "directionalInclinationStart": 0,        "directionalInclinationEnd": 44,        "directionalAzimuthStart": 20,        "directionalAzimuthEnd": 35      }    ]  }







Response Body

{"InvalidRecords":[],"Status":1}





Errors and Status codes

The error and status codes can be referenced in the APPENDIX

Field Validations

When inserting Holes against a designated Plan or Project, there are specific restrictions governing the values that may be entered into each field. These restrictions are intended to ensure data consistency and integrity during Hole creation. Please ensure all Hole creation entries strictly adhere to the allowed values for each field. Invalid entries will result in errors or rejected submissions.

Below is the complete list of fields along with their corresponding allowed values:

Fields	Allowed Values
planId	Valid PlanID. This can be retrieved using endpoint https://metrixapi.kruxanalytics.com/api/v1/Plans
Status	This accepts one of three string values:   1. “Cancelled”  2. “Abandoned”  3. “Complete”
projectId	Valid ProjectID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/projects
holeName	Enter a Valid Hole Name that is unique in the Project/Plan the hole is being uploaded to
plannedHoleName	Enter a Valid Hole Name that is unique in the Project/Plan the hole is being uploaded to
isDirectional	This accepts one of two values:   1. true  2. false
plannedDepth	Numerical value, allows decimals
utmZone	Valid UTMZone values, numerical values between 1-60 inclusive appended by N or S.  Eg: 1N or 60S
utmEasting	Numerical value, allows decimals
utmNorthing	Numerical value, allows decimals
elevation	Numerical value, allows decimals
plannedAzimuth	Numerical value, allows decimals
plannedDip	Numerical value, allows decimals
plannedDepthUnit	This accepts one of two string values:   1. “Meters”  2. “Feet”
elevationUnit	This accepts one of two string values:   1. “Meters”  2. “Feet”
mineGridEasting	Numerical value, allows decimals
mineGridNorthing	Numerical value, allows decimals
holeTypeId	Valid holeTypeID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Holes/types
holeSpecifications	Text field
tenementId	Valid TenementID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/tenements
targetNorthing	Numerical value, allows decimals
targetEasting	Numerical value, allows decimals
targetElevation	Numerical value, allows decimals
directionalUnit	This accepts one of two string values:   1. “Meters”  2. “Feet”
plannedDogleg	Numerical value, allows decimals
plannedGtf	Numerical value, no decimals allowed
startType	Allows one of the four string values:  1. “Hole Bottom”  2. “Cut Curve”  3. “Wedge”  4. “Cement Plug”
directionalDepthFrom	Numerical value, allows decimals
directionalDepthTo	Numerical value, allows decimals
directionalInclinationStart	Numerical value, allows decimals
directionalInclinationEnd	Numerical value, allows decimals
directionalAzimuthStart	Numerical value, allows decimals
directionalAzimuthEnd	Numerical value, allows decimals
drillPriority	Allows one of the four string values:  1. “Critical”  2. “High”  3. “Medium”  4. “Low”
secondaryStatusID	Valid SecondaryStatusID. This can be retrieved using endpoint  https://metrixapi.kruxanalytics.com/api/v1/Lookups/secondaryStatuses
holeID	Valid HoleID. This can be retrieved using endpoint  https:// metrixapi.kruxanalytics.com/api/v1/Holes?isPlan=true



DELETE Methods

These methods are only available to Resource Companies.

Plan DELETE

This endpoint will allow deleting plans if there is no data attached to them. If there is data attached, the plan will not be deleted and corresponding error codes will be returned.


ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Plans

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETER

None

REQUEST BODY

{

 "planIds": [

    0,1

  ]

}



Response

{

  "status": 1

}



Holes DELETE

This endpoint will allow deleting holes if there is no data attached to them.  If there is data attached, the hole will not be deleted and corresponding error codes will be returned.

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v1/Holes

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

REQUEST PARAMETER

None

REQUEST BODY

{

  "holeIds": [

    0,1

  ]

}





RESPONSE

{

  "status": 1

}



Export API Suite

This Export API Suite can be used to retrieve Incremental data

Companies GET

https://metrixapi.kruxanalytics.com/api/v2/Export/Companies

Used to obtain CompanyIDs for all divisions in user’s organization for which the user has permission to export data. CompanyId is a required parameter for GetData call.



AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

Authorization

Bearer <your_token>



RESPONSE

{

  "Table": [

    {

      "CompanyID": 12345,

      "CompanyName": "Demo Company",

      "IsParentCompany": 0

    }

  ]

}



ExportTypes GET

This is available to both Drilling and Resource companies. It is used to obtain the list of unique queries available in the API that can be used to selectively return required data. “id” from the JSON response must be entered as the queryName parameter for the GetData call.



ENDPOINT

https://metrixapi.kruxanalytics.com/api/v2/Export/ExportTypes

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

Authorization

Bearer <your_token>



RESPONSE

[

  {

    "id": "DSRActivity",

    "description": "Returns all Daily Shift Report activities that have been added-deleted-modified"

  },

  {

    "id": "DSRActivityEquipment",

    "description": "Returns all equipment attached to Daily Shift Report activities that have been added-deleted-modified"

  },

  {

    "id": "DSREquipment",

    "description": "Returns all Daily Shift Report equipment that has been added-deleted-modified"

  },

  {

    "id": "DSRConsumables",

    "description": "Returns all Daily Shift Report consumables that have been added-deleted-modified"

  },

  {

    "id": "TSWorkersLabour",

    "description": "Returns all Timesheet workers that have been added-deleted-modified"

  },

  {

    "id": "TSActivityLabour",

    "description": "Returns all workers attached to Timesheet activities that have been added-deleted-modified"

  },

  {

    "id": "TSActivityEquipment",

    "description": "Returns all Equipment attached to Timesheet activities that have been added-deleted-modified"

  },

  {

    "id": "EquipmentRental",

    "description": "Returns all Equipment Rentals that have been added-deleted-modified"

  },



   {

    "id": "AdditionalCharges",

    "description": "Returns all Additional Charges that have been added-deleted-modified"

   },

   {

      "id": "DSR",

      "description": "Returns all Daily Shift Reports that have been added-deleted-modified"

    },

   {

        "id": "DSRAdditionalCharges",

        "description": "Returns all DSR Additional Charges Rate that have been added/deleted/ modified"

    },

    {

      "id": "TS",

      "description": "Returns all Timesheets that have been added-deleted-modified"

    },

    {

        "id": "DSRFluids",

        "description": "Returns all DSR Fluids that have been added/ deleted / modified"

    },

    {

        "id": "DSRSamples",

        "description": "Returns all DSR Samples that have been added/ deleted / modified"

    },

    {

        "id": "DSRWorkersLabour",

       "description": "Returns all DSR Workers Labour that have been added / deleted / modified"

    },

    {

        "id": "DSRActivityLabour",

       "description": "Returns all DSR Activitity that have been added/ deleted / modified"

    },

    {

        "id": "DSRPerDrillRate",

       "description": "Returns all DSR Per Drill Rate that have been added/ deleted / modified"

    },

   {

        "id": "TSConsumables",

     "description": ”Returns all Timesheet consumables that have been added/ deleted /modified"

    },

    {

        "id": "TSFluids",

        "description": "Returns all Timesheet Fluids that have been added/ deleted / modified"

    },

  {

        "id": "Holes",

        "description": "Returns all Holes that have been added / deleted / modified"

    }

  {

        "id": "DSRActivityCodes",

        "description": "Returns all Krux codes for Daily Shift Report activity that have been added-deleted-modified"

  }

{

        "id": "DSRCoreRun",

        "description": "Returns all Core Runs for Daily Shift Report that have been added-deleted-modified"

  }

{

        "id": "DSRDirectionalRun",

        "description": "Returns all Directional Runs for Daily Shift Report that have been added-deleted-modified"

  }

]



ID	Description

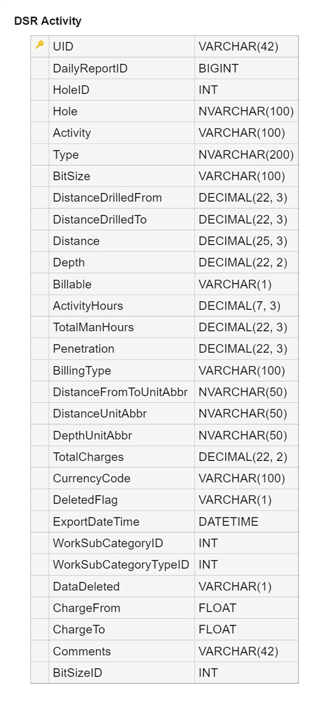

DSRActivity	Returns all Daily Shift Report activities that have been added/deleted/modified since exportDateTime

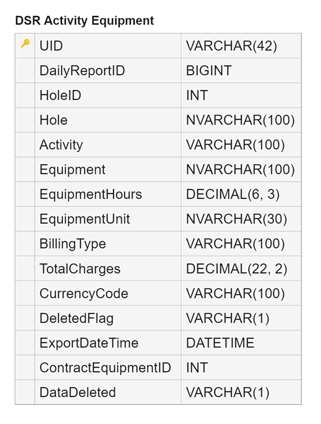

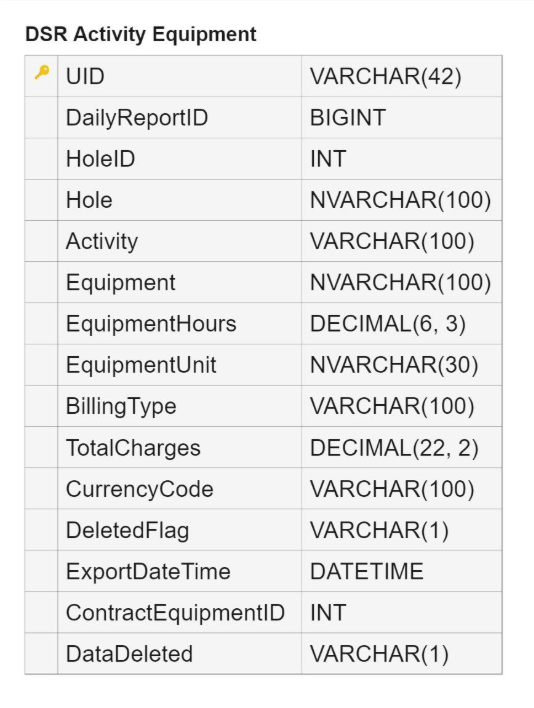

DSRActivityEquipment	Returns all equipment attached to Daily Shift Report activities that have been added/deleted/modified since exportDateTime

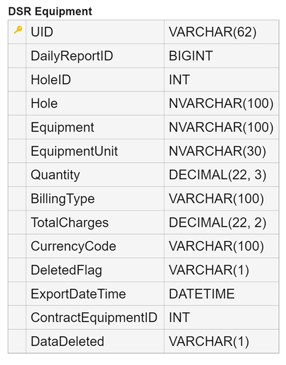

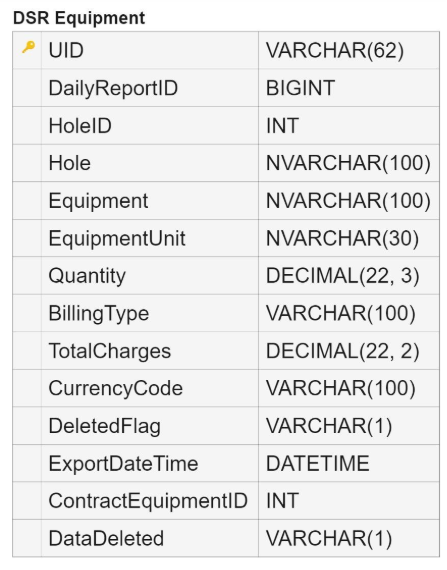

DSREquipmentUsage	Returns all Daily Shift Report equipment that has been added/deleted/modified since exportDateTime

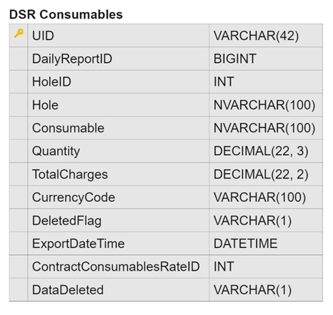

DSRConsumables	Returns all Daily Shift Report consumables that have been added/deleted/modified since exportDateTime

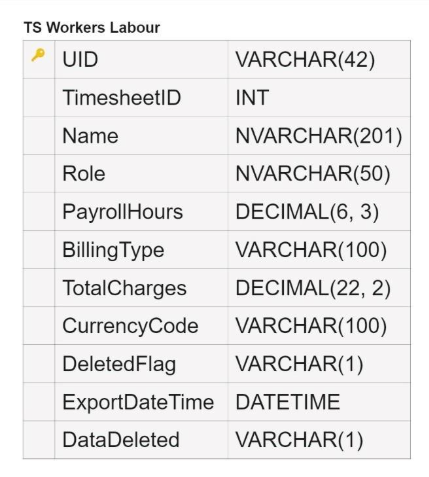

TSWorkersLabour	Returns all Timesheet workers that have been added/modified since exportDateTime

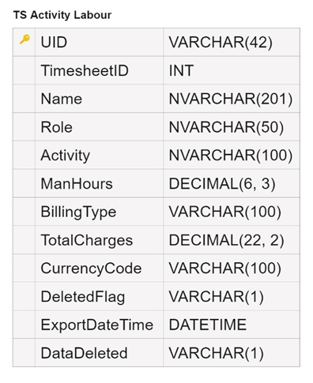

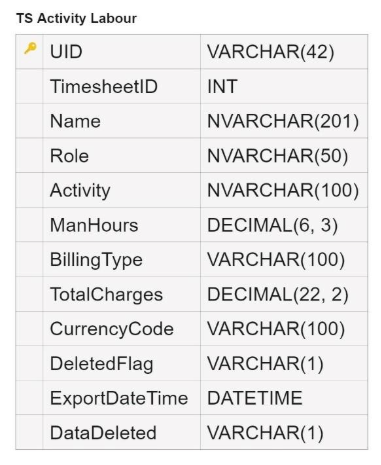

TSActivityLabour	Returns all workers attached to Timesheet activities that have been added/modified since exportDateTime

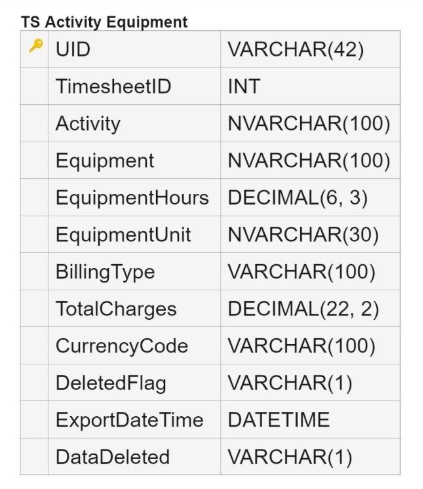

TSActivityEquipment	Returns all workers attached to Timesheet activities that have been added/deleted/modified since exportDateTime

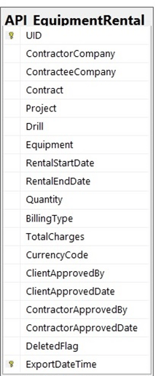

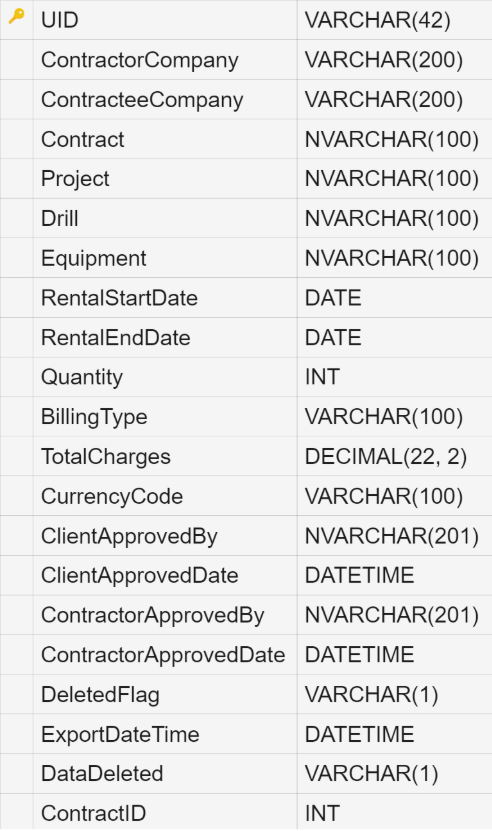

EquipmentRental	Returns all Equipment Rentals that have been added/deleted/modified since exportDateTime

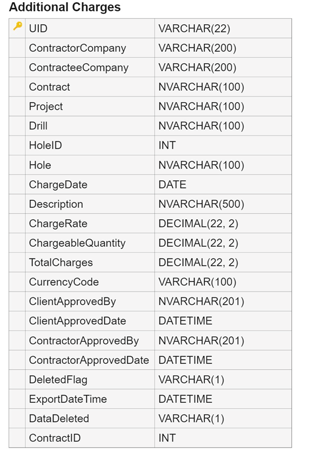

AdditionalCharges	Returns all Additional Charges added/deleted/modified since exportDateTime

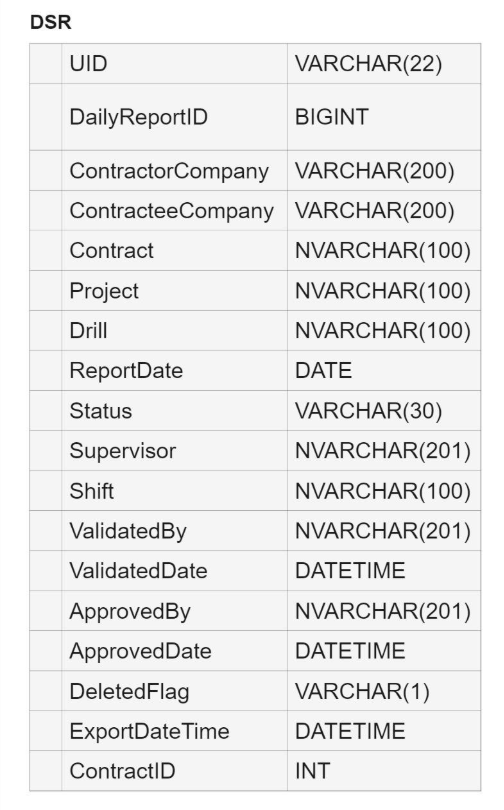

DSR	Returns all Daily Shift Reports that have been added/deleted/modified since exportDateTime

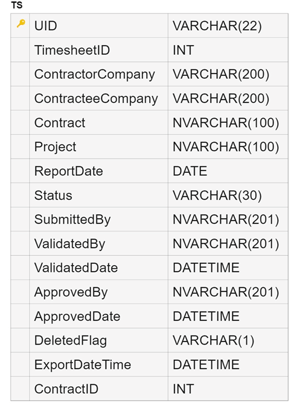

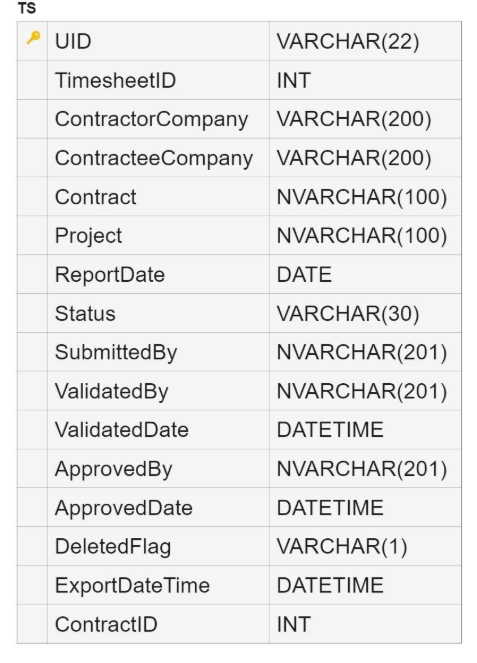

TS	Returns all Timesheets that have been added/deleted/modified since exportDateTime

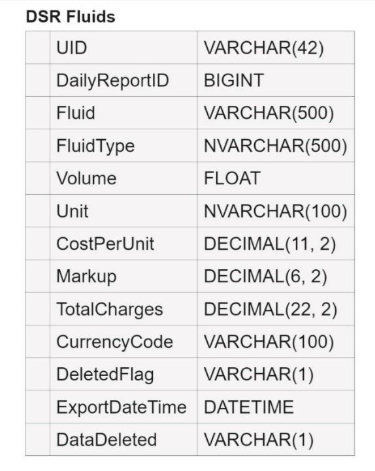

DSRFluids	Returns all Daily Shift Report fluids that have been added/deleted/modified since exportDateTime
Holes	Returns all Holes that have been added/deleted/modified since exportDateTime

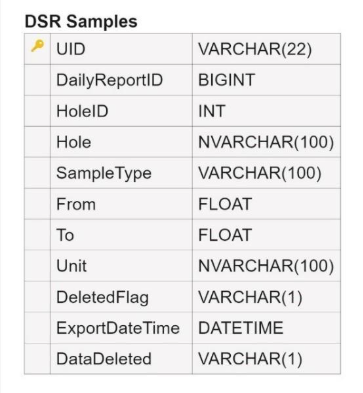

DSRSamples	Returns all Daily Shift Report samples that have been added/deleted/modified since exportDateTime

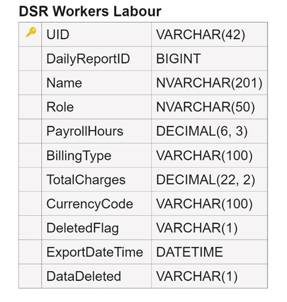

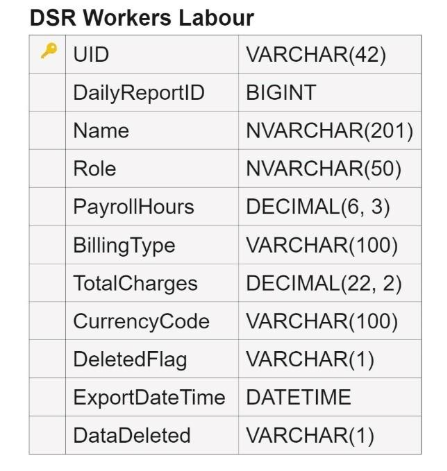

DSRWorkersLabour	Returns all Daily Shift Report workers labour that have been added/deleted/modified since exportDateTime

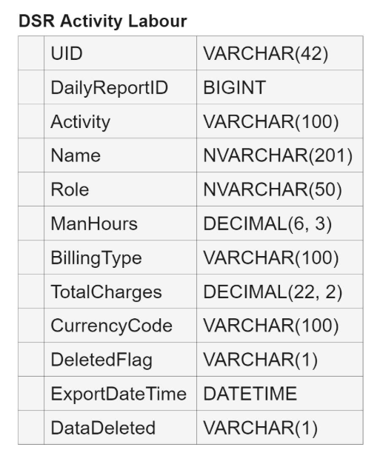

DSRActivityLabour	Returns all Daily Shift Report activity labour that have been added/modified since exportDateTime

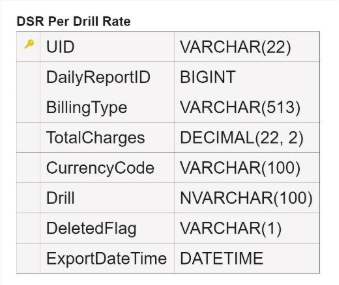

DSRPerDrillRate	Returns all DSR Per Drill Rate that have been added/ modified since exportDateTime

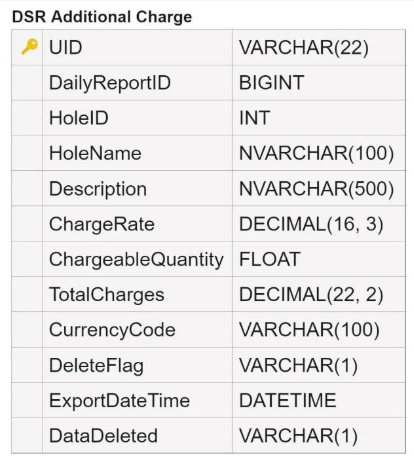

DSRAdditionalCharges	Returns all Additional Charges added/deleted/modified in the DSRs since exportDateTime

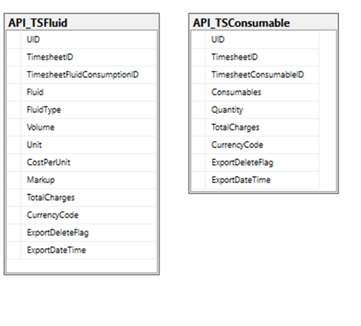

TSConsumables	Returns all Timesheet consumables that have been added/ modified since exportDateTime

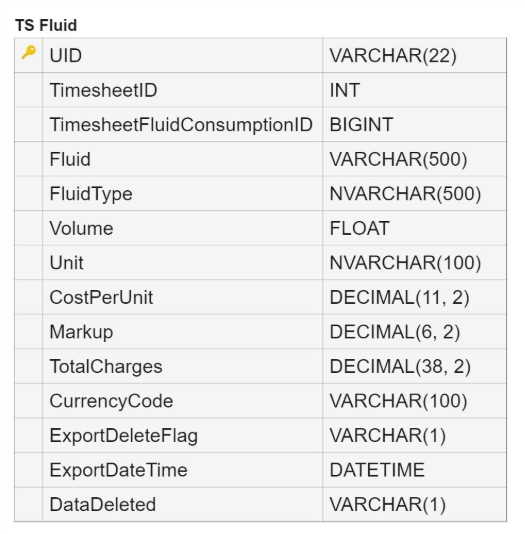

TSFluids	Returns all Timesheet Fluids that have been added/ modified since exportDateTime

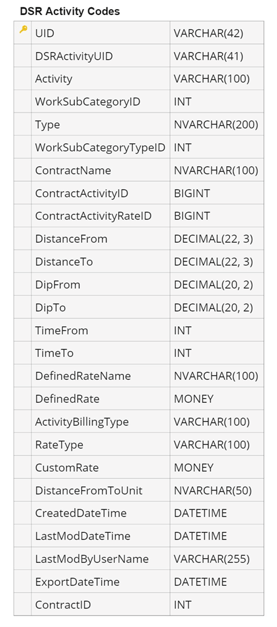

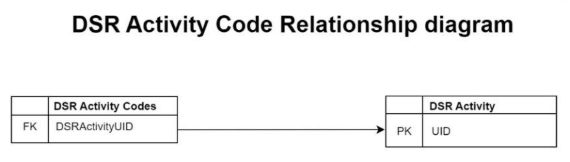

DSRActivityCodes	Returns all Krux unique codes for the DSR Activities that have been added / deleted / modified. The codes include unique Krux level Work SubCategoryID, SubCategoryTypeID, ContractActivityID  ContractActivityRateID codes for DSR Activities.

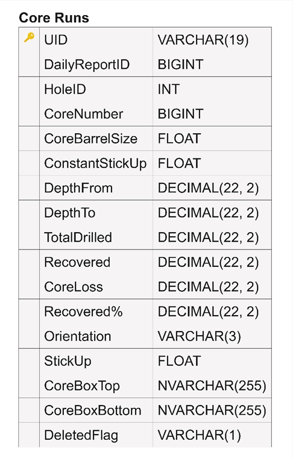

DSRCoreRuns	Returns all Daily Shift Report Core Runs that have been added/deleted/modified since exportDateTime

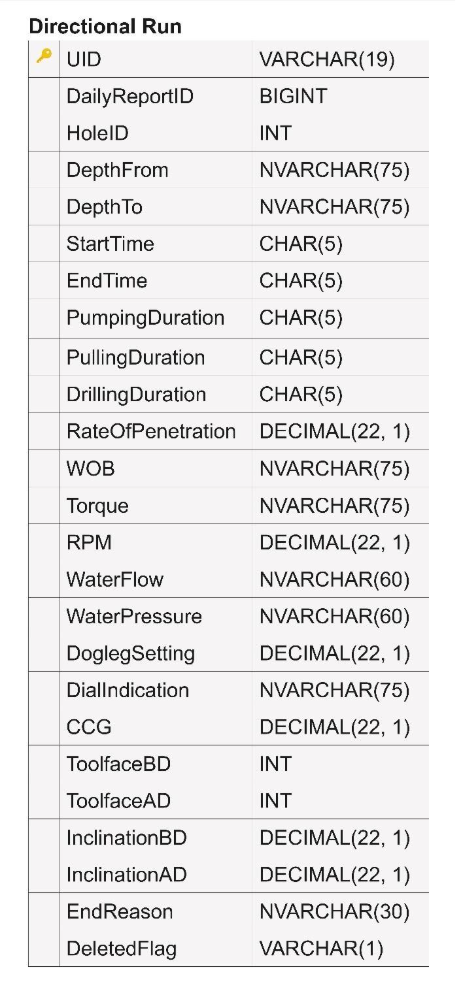

DSRDirectionalRuns	Returns all Daily Shift Report Directional Runs that have been added/deleted/modified since ExportDateTime



Retrieve Incremental Hole Data

GetData GET

This method is used to pull incremental data out of Krux.

ENDPOINT

https://metrixapi.kruxanalytics.com/api/v2/Export/GetData/

Used to export data based on queryName specified in the call. All available options can be retrieved using the ExportTypes call.

AUTHORIZATION

This request uses the Bearer Token

HEADERS

None

Authorization

Bearer <your_token>



REQUEST PARAMETERS

Key	Value	Description
companyId	Integer  (12345)	The company identifier used to specify which division of the company data will be returned for. The CompanyID for all divisions in your organization can be obtained by making a request to https://metrixapi.kruxanalytics.com/api/v2/Export/Companies
exportDateTime	Date  (2021-01-22 17:42:08.390)	The starting datetime after which data is exported. Any data that has been added, deleted or modified since exportDateTime will be returned.
queryName	String  (DSR)	The list of all queries can be obtained by making a request to https://metrixapi.kruxanalytics.com/api/v2/Export/ExportTypes



Errors

Invalid parameters will result in a 400 Bad Requests status. The message keyname in the response json will contain the parameter name with the validation error. The 3 possible messages include:

• Invalid queryName

• Invalid companyId

• Invalid exportDateTime

{

    "$id": "1",

    "message": "Invalid queryName"

}

RESPONSE

Each queryName has a unique json response.





Working with the API Data

UIDs

Every data record returned by the API has a unique identifier (UID). Each UID starts with an integer that identifies what type of data it is and then includes one to three additional IDs required to ensure uniqueness of the UID. The general format is of the UID is

Data Type – Report Record ID – Charge ID – Context Dependent ID

Data Type – An integer that identifies what type of data the record is. Included in all UIDs.

Report Record ID – Unique identifier for the report record enter by the user (e.g. A drilling activity record from a Daily Shift Report). Included in all UIDs.

Charge ID – Unique identifier for the charges calculated based on an applicable rate in the contract. (e.g. Charges calculated based on a meterage rate for a drilling activity). Only included for data that can have associated contract rates.

Context Dependent ID – Will be different for each type of data. Only included when required for uniqueness.

The format for each individual UID is included in the following sections.

Processing Incremental Data

All data returned by the GetData method is incremental data based on the exportDateTime parameter provided. This means that only data that is new or has changed in some way since the provided exportDateTime will be included. If any of the following have occurred since exportDateTime the record will be included:

• DSR/TS

• Approved for contracts with Report Approval Required = Yes

• Validated for contracts with Report Approval Required = No

• Rejected

• Deleted

• Header data was modified

• Individual record within the report was added, modified, or deleted

• Applicable contract rate was added, modified, or deleted

• Additional Charge/Equipment Rental is approved, modified, or deleted

• Hole Records was added, modified, or deleted


Records with DeletedFlag = 'N' represent approved data non-deleted data.

On the other hand, DeletedFlag = 'Y' can indicate one of the following scenarios:

1. New Data: Data that is not yet approved and is currently pending approval.

1. Rejected Data: Data that was rejected by an approver and has reverted to a pending status.

1. Deleted Data: Records removed from various sources, such as the Daily Shift Report or Timesheet and rate records deleted from contracts (which will in turn delete associated charges on DSR, TS, etc.). So, in order to distinguish actual deleted data from new or rejected data, we introduced the DataDeleted flag.

To process the new incremental data against existing dataset, use the following logic:

UID Exist in Dataset	Delete Flag	DataDeleted	Action Required
Y	Y	Y	Remove record from dataset
Y	Y	N	Remove record in dataset
Y	N	N	Update record in dataset
N	Y	Y	Disregard, do not add record to dataset
N	Y	N	Disregard, do not add record to dataset
N	N	N	Add record to dataset


Using Report and Charge Data

Each type of data returned by the API consists of just report data or report and charge data from an associated contract rate. If a data type also includes charge data, its UID will include a charge ID. The only exception to this is Additional Charges, as they are charge records in and of themselves; they have no associated contract rates. In general, the fields that are associated with the charge portion of a records are:

• Billing Type
• Total Charges
• Currency Code

The other data fields are associated with the report portion of the record.

Each individual report record can have multiple associated contract rates. This means that one report record can return multiple unique records in the API with different charges.

Example - A DSR drilling activity with a meterage rate and an hourly rate. This will return 2 records in the API.

Data Field	Record 1	Record 2
UID	1-12345-333	1-12345-777
DailyReportID	16556	16556
HoleID	47478	47478
Hole	TYC-1209	TYC-1210
Activity	Drilling	Drilling
Type	Coring	Coring
Bit Size	NQ	NQ
DistanceDrilledFrom	53	53
DistanceDrilledTo	75	75
Billable	Yes	Yes
ActivityHours	4	4
TotalManHours	8	8
Penetration	22	22
BillingType	Per Distance	Per Activity Hour
DistanceFromToUnitAbbr	m	m
TotalCharges	1430	200
CurrencyCode	CAD	CAD



Depending how you want to manipulate the API data you may have to breakout the UID in its separate IDs.

Example Calculation 1 - If you want to find the total of all charges for report record, you have to sum the TotalCharges field for all records that have the same Report Record ID.

Example Calculation 2 – If you want to find total activity hours for a Daily Shift Report. You first have to group the activity records so that you have only one record per Report Record ID. Then sum the Activity Hours field for all activities with the same DailyReportID.

Hole Data

Hole UID Format

14-[HoleID]

The HoleID column is the unique identifying number for a hole.  Any record associated directly with a hole will include HoleID as well as Hole. Hole is the name for that hole entered by the user and displayed to identify the hole for the users in the KruxMetrix and KruxLog. Hole is very often unique but it is not guaranteed to be unique; for the purposes of processing the data from the API, HoleID must be used.

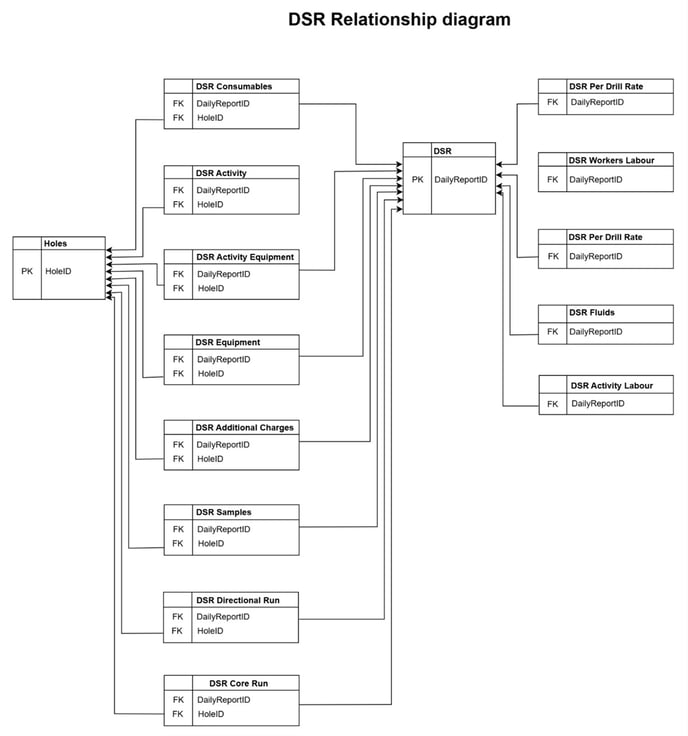

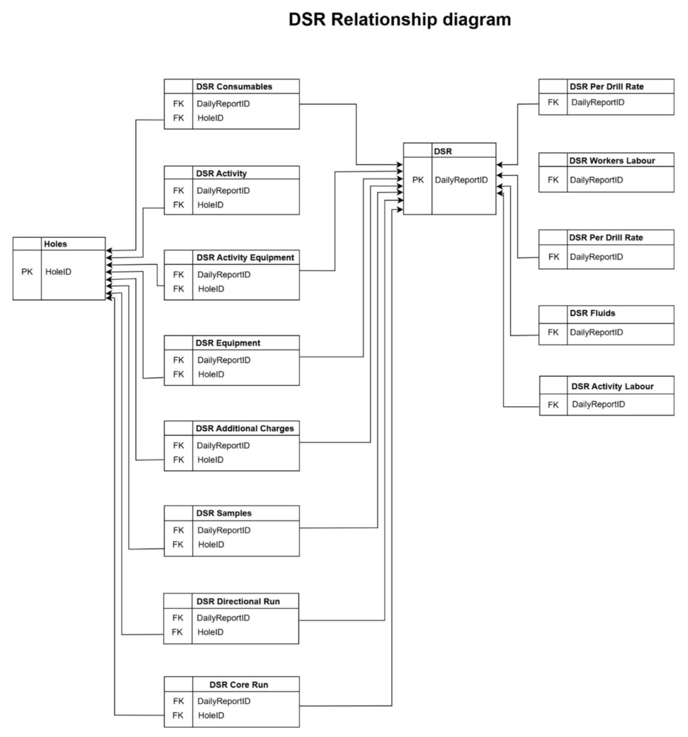

Daily Shift Report (DSR) Data

DSR Data Definitions

DSR UID Format

11-[DailyReportID]

The DailyReportID column is the unique identifying number for the Daily Shift Report (DSR). All associated data for the same DSR will have the same DailyReportID.

DSRWorkerLabour UID Format

16-[DSRWorkerLabourID]-[ DSRWorkerLabourChargeID]

The DSRWorkerLabourID is the unique identifier for the workers with payroll hours entered in the DSR. The DSRWorkerLabourChargeID is the unique identifier for the charges calculated for that worker based on an applicable rate in the contract. If there is no applicable rate in the contract, DSRWorkerLabourChargeID will be null.



DSRActivity UID Format

1-[DSRActivityID]-[DSRActivityChargeID]

The DSRActivityID is the unique identifier for the activity entered in the DSR. The DSRActivityChargeID is the unique identifier for the charges calculated for that activity based on an applicable rate in the contract. If there is no applicable rate in the contract, DSRActivityChargeID will be null.

DSRActivityEquipment UID Format

3-[DSRActivityEquipmentID]-[DSRActivityEquipmentChargeID]

The DSRActivityEquipmentID is the unique identifier for the equipment entered for an activity in the DSR. The DSRActivityEquipmentChargeID is the unique identifier for the charges calculated for that equipment based on an applicable rate in the contract. If there is no applicable rate in the contract, DSRActivityEquipmentChargeID will be null.

DSRActivityLabour UID Format

17-[DSRActivityLabourID]-[ DSRActivityLabourChargeID]

The DSRActivityLabourID is the unique identifier for the workers with man hours entered for an activity in the DSR. The DSRActivityLabourChargeID is the unique identifier for the charges calculated for that worker based on an applicable rate in the contract. If there is no applicable rate in the contract, DSRActivityLabourChargeID will be null.

DSREquipmentUsage UID Format

4-[DSREquipmentID]-[DSREquipmentChargeID] ]-[EquipmentUnitID]

The DSREquipmentID is the unique identifier for the equipment record entered in the DSR. The EquipmentUnitID is the unique identifier for a specific equipment unit that was included in the equipment record. If no specific equipment unit is selected, EquipmentUnitID will be null. The DSREquipmentChargeID is the unique identifier for the charges calculated for that equipment based on an applicable rate in the contract. If there is no applicable rate in the contract, DSREquipmentChargeID will be null.

DSRConsumables UID Format

5-[DSRConsumablesID]-[DSRConsumablesChargeID]

The DSRConsumablesID is the unique identifier for the consumable entered in the DSR. The DSRConsumablesChargeID is the unique identifier for the charges calculated for that consumable based on an applicable rate in the contract. If there is no applicable rate in the contract, DSRConsumablesChargeID will be null.

DSRFluids UID Format

13-[DSRFluidsID]-[DSRFluidsChargeID]

The DSRFluidsID is the unique identifier for the fluid volume entered in the DSR. The DSRFluidsChargeID is the unique identifier for the charges calculated for that fluid based on an applicable rate in the contract. If there is no applicable rate in the contract, DSRFluidsChargeID will be null.

DSRSamples UID Format

15-[DSRSamplesID]

The DSRSamplesID is the unique identifier for the sample entered in the DSR.

DSRPerDrillRate UID Format

18-[DSRPerDrillRateID]

The DSRPerDrillRateID is the unique identifier for the Per Drill Rate entered in the DSR.

DSRAdditionalCharges UID Format

10-[DSRAdditionalChargeID]

The DSRAdditionalChargeID is the unique identifier for the DSR additional charge record.

DSRActivityCodes UID Format

22-[DSRActivityID]-[DSRActivityChargeID]

The DSRActivityID is the unique identifier for the activity entered in the DSR. The DSRActivityChargeID is the unique identifier for the charges calculated for that activity based on an applicable rate in the contract. If there is no applicable rate in the contract, DSRActivityChargeID will be null.

DSRCoreRun UID Format

23-[DailyReportHoleActivityCoreRunID]

The DailyReportHoleActivityCoreRunID is the unique identifier for the core run entered for a drilling activity in the DSR.

DSRDirectionalRun UID Format

23-[ DailyReportHoleActivityDirectionalRunID]

The DailyReportHoleActivityCoreRunID is the unique identifier for the core run entered for a drilling activity in the DSR.

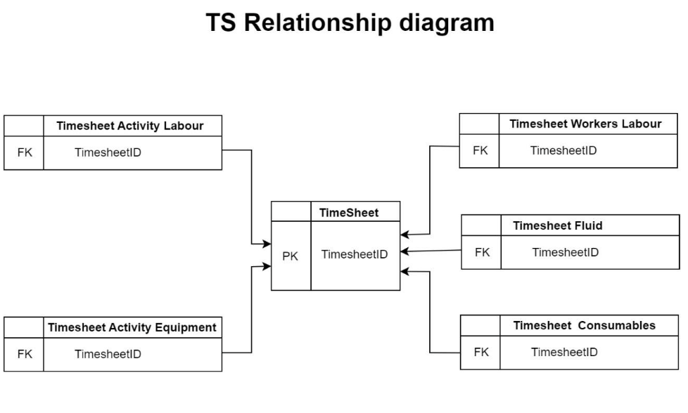

Timesheet (TS) Data

TS UID Format

12-[TimesheetID]

The TimesheetID column is the unique identifying number for the Timesheet (TS). All associated data for the same timesheet will have the same TimesheetID.

TSWorkersLabour UID Format

6-[TSWorkerLabourID]-[ TSWorkerLabourChargeID]

The TSWorkerLabourID is the unique identifier for the workers with payroll hours entered in the TS. The TSWorkerLabourChargeID is the unique identifier for the charges calculated for that worker based on an applicable rate in the contract. If there is no applicable rate in the contract, TSWorkerLabourChargeID will be null.

TSActivityLabour UID Format

7-[TSActivityLabourID]-[TSActivityLabourChargeID]

The TSActivityLabourID is the unique identifier for the workers with man hours entered for an activity in the TS. The TSActivityLabourChargeID is the unique identifier for the charges calculated for that worker based on an applicable rate in the contract. If there is no applicable rate in the contract, TSActivityLabourChargeID will be null.

TSActivityEquipment UID Format

8-[TSActivityEquipmentID]-[TSActivityEquipmentChargeID]

The TSActivityEquipmentID is the unique identifier for the equipment entered for an activity in the TS. The TSActivityEquipmentChargeID is the unique identifier for the charges calculated for that equipment based on an applicable rate in the contract. If there is no applicable rate in the contract, TSActivityEquipmentChargeID will be null.

TSConsumables UID Format

20-[TSConsumablesID]

The TSAConsumablesID is the unique identifier for the timesheet consumables entered for an activity in the TS.

TSFluid UID Format

19-[TSFluid]

The TimesheetFluidConsumptionID is the unique identifier for the timesheet fluid consumables entered for an activity in the TS.

Equipment Rentals Data

EquipmentRental UID Format

9-[EquipmentRentalID]-[ContractEquipmentID]

The EquipmentRentalID is the unique identifier for the equipment rental record. The ContractEquipmentID is the unique identifier for the charges calculated for that equipment rental based on an applicable rate in the contract. If there is no applicable rate in the contract, EquipmentRentalChargeID will be null.

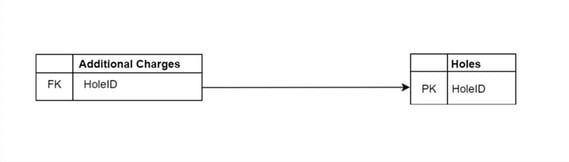

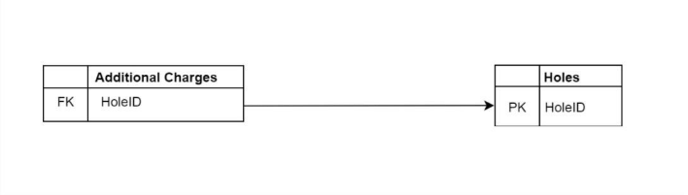

Additional Charges Data

AdditionalCharges UID Format

10-[AdditionalChargeID]

The AdditionalChargeID is the unique identifier for the additional charge record.

Appendix

Status Codes

Status Code	Status
1	All records succeeded
2	Warning for records that failed while some records succeeded
3	All records failed with error codes for failed records



Error Codes

ImportType	FailureCode	FailureText
All	0	Successful
Plan	1	Duplicate Plan Name
Plan	2	LocationID does not exist
Plan	3	CurrencyID does not exist
Plan	4	PlannedDepthUnitID does not exist
Plan	5	PlanTypeID does not exist
Plan	6	PlanID does not exist
Plan	7	Budget is not null but CurrencyID is null
Plan	8	PlannedDepth is not null but PlannedDepthUnitID is null
Hole	101	Duplicate Hole Name
Hole	102	Duplicate Planned Hole Name
Hole	103	DrillPriority does not exist
Hole	104	ElevationUnitID does not exist
Hole	105	HoleTypeID does not exist
Hole	106	IsDirectional value does not exist
Hole	107	PlanID does not exist
Hole	108	PlannedDepthUnitID does not exist
Hole	109	ProjectID does not exist
Hole	110	StartType does not exist
Hole	111	TenementID does not exist
Hole	112	UTMZoneID does not exist
Hole	113	PlannedDepth is not null but PlannedDepthUnitID is null
Hole	114	ElevationUnit is required when Elevation has a value
Hole	115	Additional Charges exist
Hole	116	DSR Activities exist
Hole	117	DSR Additional Charges exist
Hole	118	DSR Consumables exist
Hole	119	DSR Equipment Usage exists
Hole	120	DSR Samples exist
Hole	121	SecondaryStatus does not exist
Hole	122	HoleID does not exist
Hole	123	Hole is already deleted
Hole	124	SecondaryStatus is not correct
Plan	200	Empty plan name.
Plan	201	Currency id needed when budget has a value.
Plan	202	PlannedDepthUnit is needed when PlannedDepth has a value.
Plan	203	Plan name is too long.
Plan	204	Duplicate plan name in the data set.
Plan	205	Invalid plan id.
Plan	206	Invalid plan status.
Plan	207	Invalid plan name.
Plan	208	Duplicate plan id in the data set.
Plan	209	Plan not found.
Plan	210	Plan has hole(s) attached.
Hole	300	Empty Planned hole name.
Hole	301	Hole name or Planned hole name is required to add a hole.
Hole	302	PlannedDepthUnit is needed when PlannedDepth has a value.
Hole	303	Hole name is too long.
Hole	304	HoleSpecifications is too long.
Hole	305	Plan id or Project id is required to add a hole.
Hole	306	StartType has an invalid value.
Hole	307	DrillPriority has an invalid value.
Hole	308	Status has an invalid value.
Hole	309	Invalid hole id.
Hole	310	Hole id is required to update hole.
Hole	311	Elevation unit id has an invalid value.
Hole	312	Duplicate hole name in the data set.
Hole	313	Invalid Project id.
Hole	314	Duplicate hole id in the data set.
Hole	315	ElevationUnit is required when Elevation has a value.
Hole	316	ElevationUnit has an invalid value.
Hole	317	Invalid Utm Zone.
Hole	318	UtmEasting has value without UTM zone.
Hole	319	UtmNorthing has value without UTM zone.
Hole	400	TargetNorthing is only applicable when IsDirectional is true.
Hole	401	TargetEasting is only applicable when IsDirectional is true.
Hole	402	TargetElevation is only applicable when IsDirectional is true.
Hole	403	DirectionalUnit is only applicable when IsDirectional is true.
Hole	404	PlannedDogleg is only applicable when IsDirectional is true.
Hole	405	PlannedGTF is only applicable when IsDirectional is true.
Hole	406	StartType is only applicable when IsDirectional is true.
Hole	407	DirectionalDepthFrom is only applicable when IsDirectional is true.
Hole	408	DirectionalDepthTo is only applicable when IsDirectional is true.
Hole	409	PlannedDepth is only applicable when IsDirectional is false.
Hole	410	PlannedDepthUnit is only applicable when IsDirectional is false.
Hole	411	PlannedAzimuth is only applicable when IsDirectional is false.
Hole	412	PlannedDip is only applicable when IsDirectional is false.
Hole	413	DirectionalInclinationStart is only applicable when IsDirectional is true.
Hole	414	DirectionalInclinationEnd is only applicable when IsDirectional is true.
Hole	415	DirectionalAzimuthStart is only applicable when IsDirectional is true.
Hole	416	DirectionalAzimuthEnd is only applicable when IsDirectional is true.
All	998	SQL Locking issue
All	999	Unknown SQL error
